Database System

1 SQL Part Ⅰ

1.1 SQL Introduction

SQL = Structured Query Language

Although over 40 years old, it keeps re-emerging as the standard.

Features:

Declarative!
- Specify what you want, not how to get it.
Implemented widely
- With varying levels of efficiency, completeness.
Constrained
- Not targeted at Turing-complete tasks.
General-purpose and feature-rich
- Many years of added features.
- Extensible: Callouts to other languages, databases.

1.2 Relational Terminology

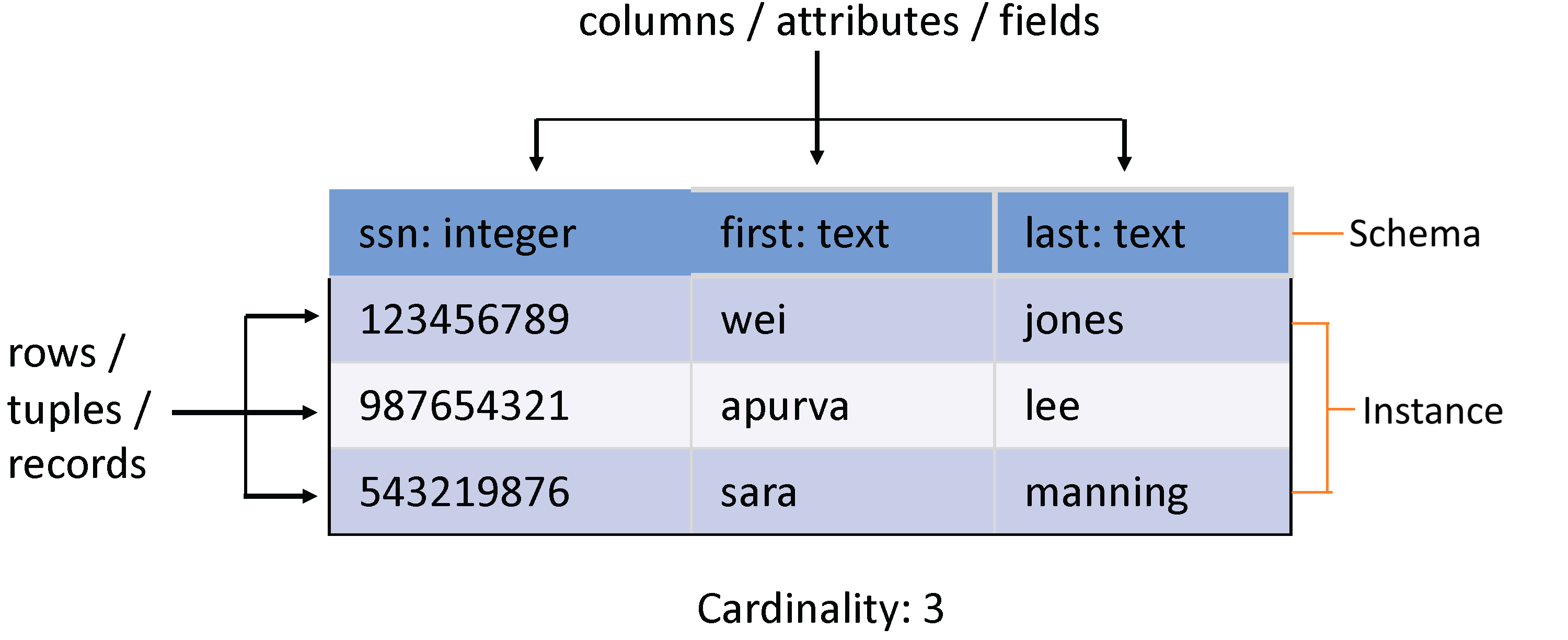

Definitions:

Database: Set of named relations.
Relation (aka Table):
- Schema: description ( "metadata").
- Instance: set of data satisfying the schema.
Attribute (aka Column, Field)
Tuple (aka Record, Row)
Cardinality: Number of rows in a table.

Properties:

Schema is fixed, unique attribute names, atomic (aka primitive) types.
Tables are NOT ordered, they are sets or multisets (bags).
Tables are FLAT, no nested attributes.
Tables DO NOT prescribe how they are implemented/stored on disk, which is called physical data independence.

1.3 SQL Language

SQL Language:

Two Sublanguages:
- DDL (Data Definition Language): Define and modify schema.
- DML (Data Manipulation Language): Queries can be written intuitively.
Relational Database Management System (RDBMS): responsible for efficient evaluation, choose and run algorithms for declarative queries (choice of algorithm must not affect query answer).

SQL DDL Examples:

Sailors

sid	sname	rating	age
1	Fred	7	22
2	Jim	2	39
3	Nancy	8	27

CREATE TABLE Sailors ( sid INTEGER, sname CHAR(100), rating INTEGER, age FLOAT PRIMARY KEY (sid));

Boats

bid	bname	color
101	Nina	red
102	Pinta	blue
103	Santa Maria	red

CREATE TABLE Boats ( bid INTEGER, bname CHAR (20), color CHAR(10), PRIMARY KEY (bid));

Reserves

sid	bid	day
1	102	9/12
2	102	9/13

CREATE TABLE Reserves ( sid INTEGER, bid INTEGER, day DATE, PRIMARY KEY (sid, bid, day), FOREIGN KEY (sid) REFERENCES Sailors, FOREIGN KEY (bid) REFERENCES Boats);

1.4 SQL Queries

Basic Single Table Queries:

SELECT [DISTINCT] <column expression list> FROM <single table> [WHERE <predicate>]

Produce all tuples in the table that satisfy the predicate.
Output the expressions in the SELECT list,
Expression can be a column reference, or an arithmetic expression over column refs.

Example:

SELECT S.name, S.gpa, S.age*2 AS a2 FROM Students [AS] S WHERE S.dept = 'CS' ORDER BY S.gpa DESC, S.name ASC, a2; LIMIT 3;

SELECT, FROM, WHERE lines:
- Return all unique (name, GPA) pairs from students.
- DISTINCT specifies removal of duplicate rows before output.
- Can refer to the students table as S, this is called an alias.
ORDER line:
- ORDER BY clause specifies output to be sorted.
  - Sorts the output by GPA in descending order, then by name in ascending order.
  - Also computes the value of age*2 and names it a2.
- Obviously must refer to columns in the output.
  Note the AS clause for naming output columns!
LIMIT line:
- Only produces the first 3 output rows.
- Typically used with ORDER BY.
  - Otherwise the output is non- deterministic.
  - Not a "pure" declarative construct in that case – output set depends on algorithm for query processing.

Aggregates:

SELECT [DISTINCT] AVG(S.gpa) FROM Students S WHERE S.dept = 'CS';

Before producing output, compute a summary (aka an aggregate) of some arithmetic expression.
Produces 1 row of output, with one column of average in this case.
Other aggregates: SUM, COUNT, MAX, MIN (and others).

Group By:

SELECT [DISTINCT] AVG(S.gpa), S.dept FROM Students S GROUP BY S.dept

Partition table into groups with same GROUP BY column values, can group by a list of columns.
Produce an aggregate result per group, cardinality (rows) of output = number of distinct group values.
Note: can put grouping columns in SELECT list (in this case, average GPA + department).

Having:

SELECT [DISTINCT] AVG(S.gpa), S.dept FROM Students S GROUP BY S.dept HAVING COUNT(*) > 2

The HAVING predicate filters groups
HAVING is applied after grouping and aggregation
- Hence can contain anything that could go in the SELECT list
- i.e., aggs or GROUP BY columns
HAVING can only be used in aggregate queries
It's an optional clause

2 SQL Part Ⅱ

2.1 Join Queries

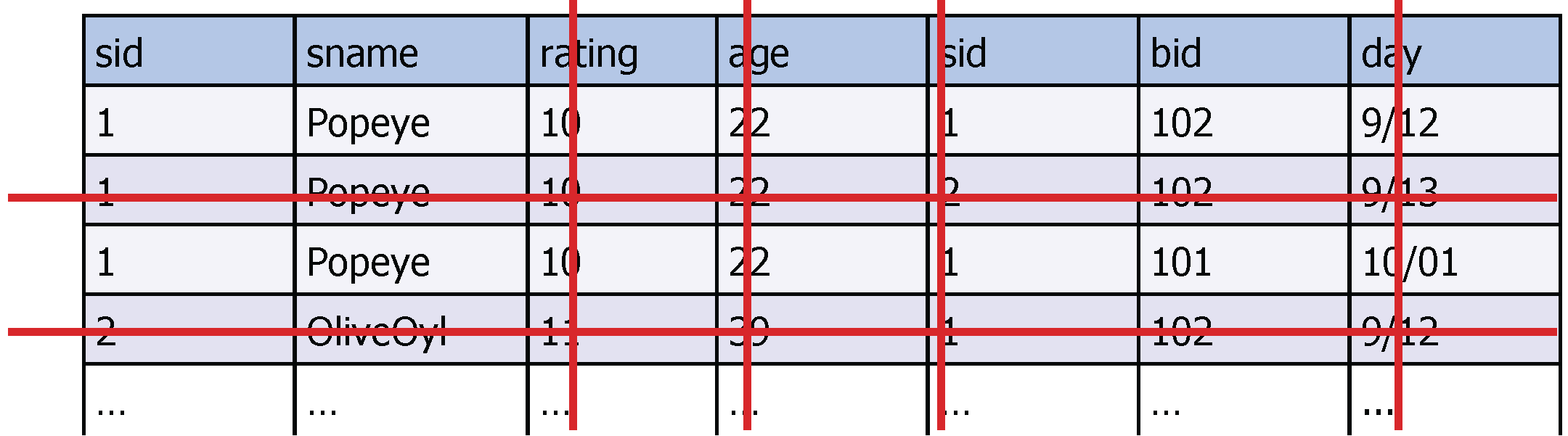

Join: Form cross product of the tables, output all tuples and select specific columns.

Example:

Sailors

sid	sname	rating	age
1	Popeye	10	22
2	OliveOyl	11	39
3	Garfield	1	27
4	Bob	5	19

Reserves

sid	bid	day
1	102	9/12
2	102	9/13
1	101	10/01

                    SELECT S.sid, S.sname, R.bid
                    FROM Sailors, Reserves
                    WHERE Sailors.sid=Reserves.sid;


                    SELECT S.sid, S.sname, R.bid
                    FROM Sailors AS S, Reserves AS R
                    WHERE S.sid=R.sid;


Output

sid	sname	bid
1	Popeye	102
2	OliveOyl	102

Self-Joins

SELECT x.sname AS sname1, x.age AS age1, y.sname AS sname2, y.age AS age2 FROM Sailors AS x, Sailors AS y WHERE x.age > y.age;

Output

sname1	age1	sname2	age2
Popeye	22	Bob	19
OliveOyl	39	Popeye	22
OliveOyl	39	Garfield	27
OliveOyl	39	Bob	19
Garfield	27	Popeye	22
Garfield	27	Bob	19

Inner Join

2.2 Select & Where Advanced

Arithmetic Expressions

SELECT S.age, S.age-5 AS age1, 2*S.age AS age2 FROM Sailors AS S WHERE S.sname = 'Popeye';

SQL Calculator

SELECT log(1000) as three, exp(ln(2)) as two, cos(0) as one, ln(2*3) = ln(2) + ln(3) as sanity;

three	two	one	sanity
3.0	2.0	1.0	1

String Comparison

                    SELECT S.sname
                    FROM Sailors AS S
                    WHERE S.sname LIKE 'B_%';


                    SELECT S.sname
                    FROM Sailors AS S
                    WHERE S.sname ~ 'B.*';


Boolean Logic vs. Set Operators

Reserve a red or a green boat

                    SELECT R.sid
                    FROM Boats B, Reserves R
                    WHERE R.bid = B.bid AND (B.color = 'red' OR B.color = 'green');


                    SELECT R.sid
                    FROM Boats B, Reserves R
                    WHERE R.bid = B.bid AND B.color = 'red';

                    UNION ALL

                    SELECT R.sid
                    FROM Boats B, Reserves R
                    WHERE R.bid = B.bid AND B.color = 'green';


Reserve a red and a green boat

                    -- A boat cannot be red and green at the same time
                    SELECT R.sid
                    FROM Boats B, Reserves R
                    WHERE R.bid = B.bid AND (B.color = 'red' AND B.color = 'green');


                    SELECT R.sid
                    FROM Boats B, Reserves R
                    WHERE R.bid = B.bid AND B.color = 'red';

                    INTERSECT

                    SELECT R.sid
                    FROM Boats B, Reserves R
                    WHERE R.bid = B.bid AND B.color = 'green';


Set Semantics

Default (Think of each letter as being a tuple in a relation):

R = {A, A, A, A, B, B, C, D}

S = {A, A, B, B, B, C, E}

UNION: {A, B, C, D, E}
INTERSECT: {A, B, C}
EXCEPT: {D}

"ALL": Multiset Semantics

R = {A, A, A, A, B, B, C, D} = {A(4), B(2), C(1), D(1)}

S = {A, A, B, B, B, C, E} = {A(2), B(3), C(1), E(1)}

UNION ALL (sum of all cardinalities): {A(6), B(5), C(2), D(1), E(1)}
INTERSECT ALL (min of cardinalities): {A(min(4,2)), B(min(2,3)), C(min(1,1)), D(min(1,0)), E(min(0,1))} = {A, A, B, B, C}
EXCEPT ALL (subtract cardinalities): {A(4-2), B(2-3), C(1-1), D(1-0), E(0-1)} = {A, A, D}

2.3 Nested Queries

In
Example
SELECT S.sname FROM Sailors S WHERE S.sid IN (SELECT R.sid FROM Reserves R WHERE R.bid = 102); -- Subquery
Not In
Example
SELECT S.sname FROM Sailors S WHERE S.sid NOT IN (SELECT R.sid FROM Reserves R WHERE R.bid = 103); -- Subquery
Exists
Example 1 (bit odd, but legal)
SELECT S.sname FROM Sailors S WHERE EXISTS (SELECT * FROM Reserves R WHERE R.bid = 103); /* The query will output all the sailors if there is at least one sailor who reserves boat 103 or return nothing if there isn't */
Example 2 (Nested Queries with Correlation)
SELECT S.sname FROM Sailors S WHERE EXISTS (SELECT * FROM Reserves R WHERE R.bid = 103 AND R.sid = S.sid); /* The query will output all the sailors who reserve boat 103. * In this example, the subquery will take every tuple of the sailors and run it, * tuple by tuple. */

Example for Division

SELECT S.sname FROM Sailors S WHERE NOT EXISTS (SELECT B.bid FROM Boats B WHERE NOT EXISTS (SELECT R.sid FROM Reserves R WHERE R.bid = B.bid AND R.sid = S.sid));

ARGMAX

Example: Sailor with the Highest Rating

                    SELECT *
                    FROM Sailors S
                    WHERE S.rating >= ALL
                        (SELECT S2.rating
                        FROM Sailors S2);


                    SELECT *
                    FROM Sailors S
                    ORDER BY S.rating DESC
                    LIMIT 1;


3 Disks & Drives

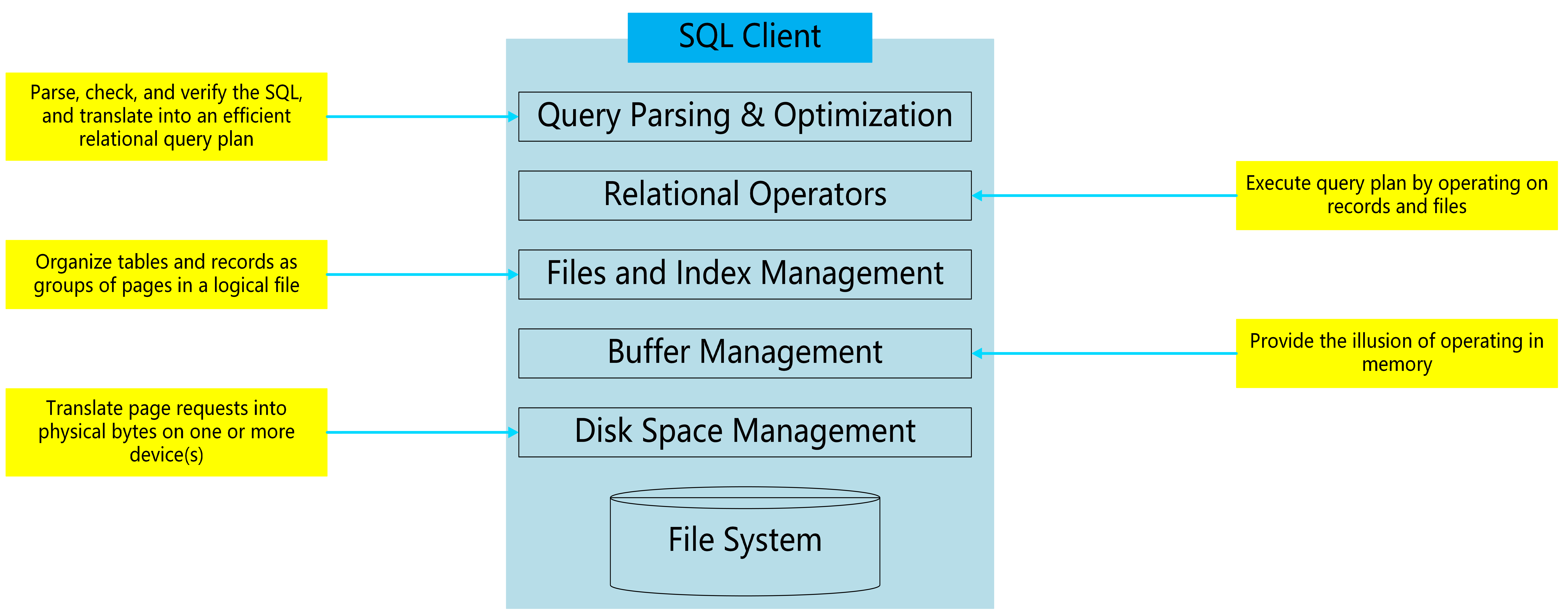

3.1 DBMS Architectures

Features

Organized in layers
Each layer abstracts the layer below: Manage complexity (easy to use) & Performance assumptions (assume the perfomrance of lower layers)
Two cross-cutting issues related to storage and memory management: Concurrency control & Recovery

3.2 Disks

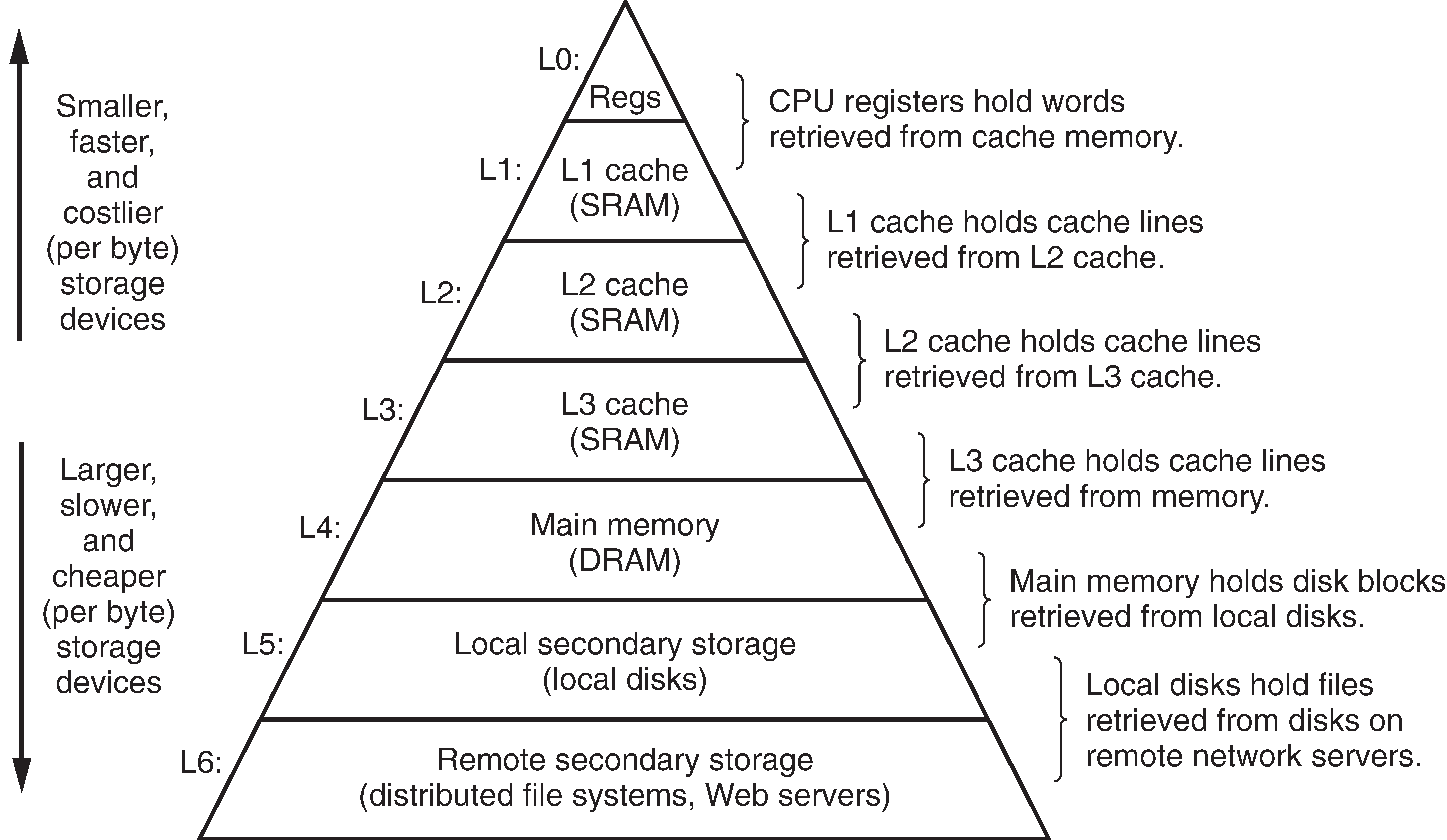

Memory Hierarchy

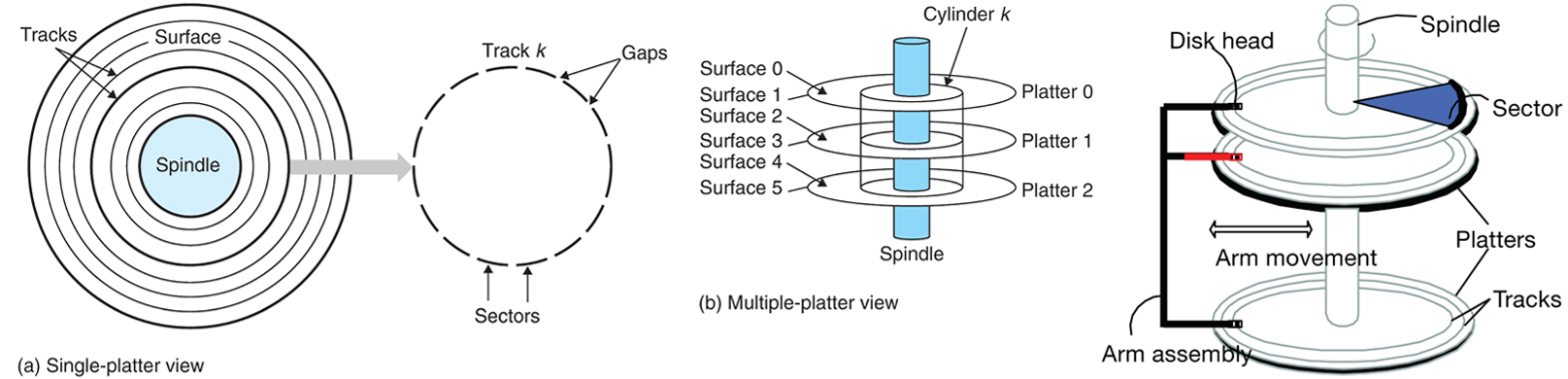

Disk Components

Platters spin together (around 15000 rpm). Arm assembly can move in or out to position a head on a desired track, but only one head reads/writes at any one time.

Disk Operation & Access Time

Disks read and write data in sector-size blocks with access time of three components.

Seek Time: Moving arms to position disk head on track that contains that contains the target sector.
Rotational Delay: Waiting for block to rotate the first bit of the target sector to pass under the head.
Transfer Time: Moving data to/from disk surface (Read/Write the contents of the sector).

Disk Capacity

Disk capacity is determined by the following technology factors.

Recording Density (bits/in):# bits that can be squeezed into a 1-inch segment of a track.
Track density (tracks/in):# tracks that can be squeezed into a 1-inch segment of the radius extending from the center of the platter.
Areal density (bits/in²): The product of the recording density and the track density.
